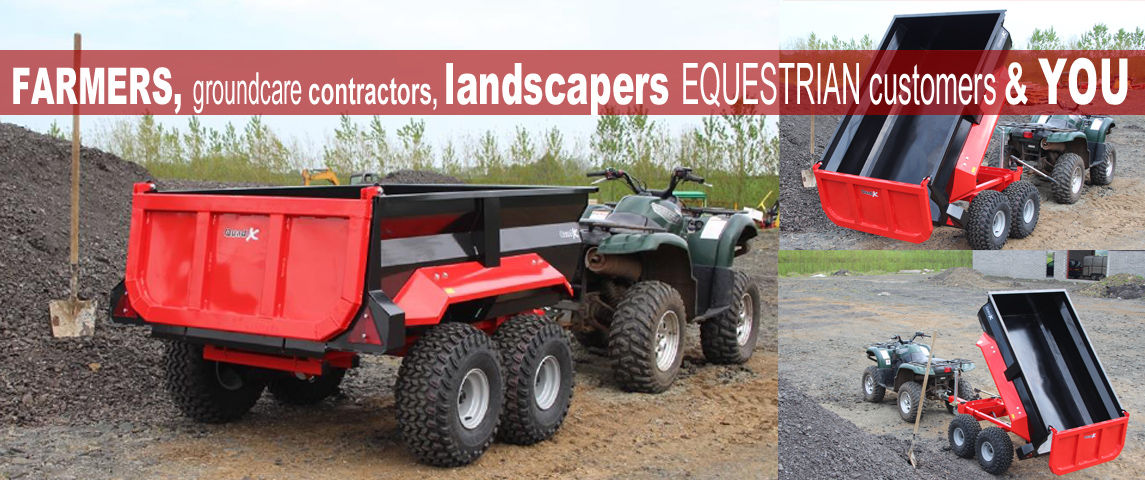

Dump Trailer-ATV/UTV Compact Tractor
Engineered for strength and durability, with farmers, groundcare, contractors, landscapers, amenities and equestrian customers in mind.

Quad-X have developed the commercial spec dump trailer for use with larger ATVs and Utility Vehicles (UTVs) or with compact tractors.
Available up to 1000L capacity.
Using our extensive knowledge of ATV equipment, the Quad-X engineers have considered the finer details to ensure that the trailer design creates less drag when tipping a large load from the 1000 Litre capacity dump trailer.

Special design for maximum strength and minimum weight
This dump trailer has been developed to a heavy duty specification for heavier loads and for use with larger ATVs and utility vehicles (UTVs) or compact tractors. By using 3-D finite element analysis on the trailer chassis and body we have been able to develop it for maximum strength and minimum weight. Press strengthened sides add to the robust body.
The trailer design creates less drag when tipping a large load.

Pivot bogie suspension allows for easier towing over uneven terrain.

Knobby flotation tyres make it suitable for wet conditions. Special heavy walled 22-11×8 tyres are used to handle heavier loads.

A swivel hitch is fitted as standard for safety.

Greasable bushes are used for long life.

The jockey wheel is fitted as standard to allow for easy coupling.
Automatic door system
The dump trailer benefits from an automatic door open/close system for quick and easy tipping. This means more time on the job without having to leave your seat.

Tipping system
3 tipping options are available:
Electric hydraulic
Manual
Hydraulic
Finish for durability
To protect your investment, the dump trailer body is shot blasted and goes through a 4 stage pre finish treatment and then a 2 stage poly coating process, to ensure a quality finish for durability and to help prevent corrosion. The two colour black/red finish creates an eye catching trailer.
The chassis and draw-bar are galvanised for durability.

We offer environmentally sound specialist coatings that offer corrosion protection from mechanical damage as well as chemical & weathering resistance. Our specialist powder coating offers an excellent long-lasting, and colour-durable quality finish that is extremely decorative and resistant to chemicals, chipping, fading and wearing.
The powder coating finish is also virtually pollution-free, with very little wastage in the application process, containing no solvents and producing almost zero volatile organic compounds.
Powder coating is finished to the British Standards BS EN 12206 : 2004 and BS EN 13438:2005

The Dump trailer is available with either:
Manual Hydraulic Tip
This cost effective option allows for easy tipping in well under a minute. The removable handle can be safety clipped to the trailer body for storage.

Electric hydraulic power pack
This option allows for tipping at the push of a button without having to leave your seat.
Hydraulic Tip – for compact tractor.

Trailer Capacity
The Quad-X Dump Trailer is available in either:
800L Body Capacity
1000L Body Capacity
1200L Body Capacity(elec tipp standard)

Finish/Colour
Quad-X can manufacture the dump trailer with different paint finishes to suit your requests. Fully galvanised dump trailer is also an option.

Optional Extras
Galvanised finish. (please add €150 inc vat for this option)
Road lighting kit. (please add €150 inc vat for this option)


I was looking for a tough no nonsense tipping trailer to match the Pioneer Ranger and the Quad-X tipping trailer was the winner after looking at the spec. Good thickness of steel is used in the construction with nice heavy duty welds to hold everything together - the trailer is obviously built to be heavily used and abused. The tough galvanised no nonsense version was preferred against the painted finish and it’s working well around a 12 acre small holding/stable yard where manoeuvrability is a key requirement.Denis Jones - Worcester


Photos are for illustration proposes only. Prices include VAT, exclude any dealer installation and/or freight charges. Freight is ex-Ballydooley, Roscommon Co Roscommon F42DD74. JF Hanley Groundcare reserves the right to change recommended price, design and/or specifications without notice. Errors and omissions excepted.
